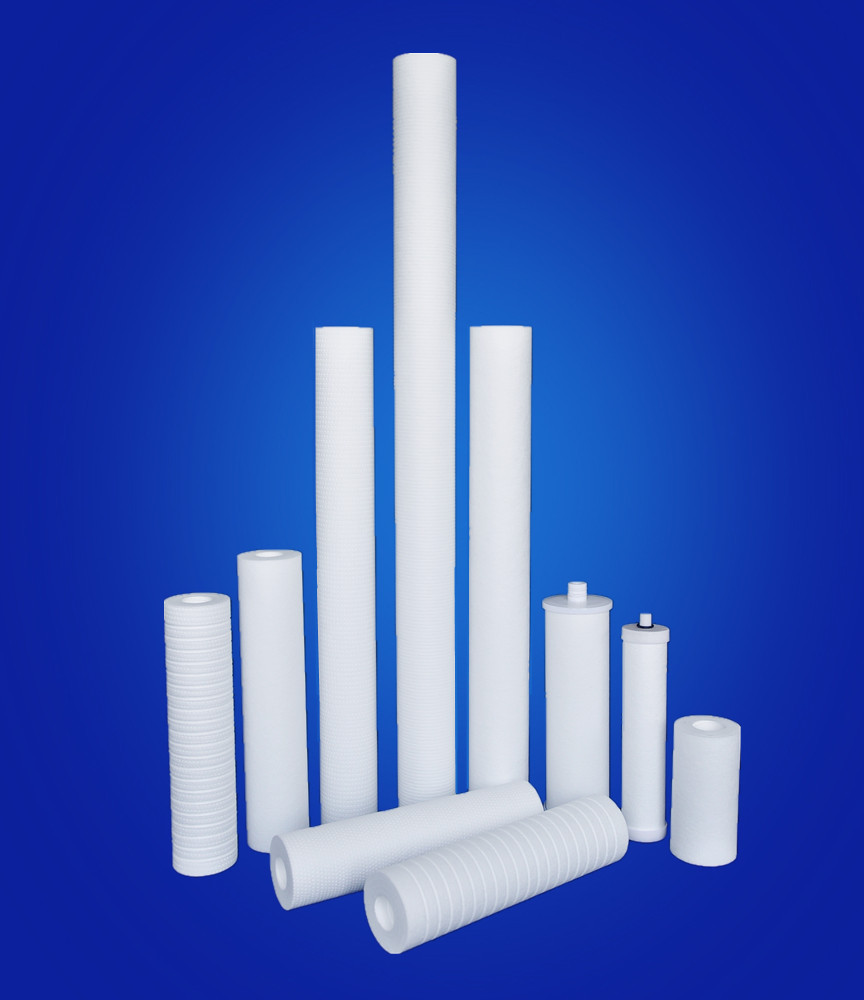

The XSJ PP Melt Blown Filter Cartridges

The XSJ PP Melt Blown Filter Cartridges are made of super-fine fibre of polypropylene. The fibre forms 3-dimension porous structure randomly with melt-reel method. The hole diameter shows grads distributing along filtrate flow. The filter cartridge includes both surface and inner filter effect. It can do primary and fine filter simultaneously. So different sizes impurities can be remained. The precision range is from 1μm to 100μm,Its flow rate is over 1.5 times faster than the cell filter cartridge.

Specifications

Dimensions

  ◆OD:  63mm   115mm or according to the customers’

 requirements

  ◆ID:   28mm     30mm

Length:9.75''   9.87''   10''    20''   30''   40''   50''   60''

Material of constructions                                                                   ◆Filter media : PP

  ◆core: PP

  ◆End cap:PP

  ◆Gaskets/O=ring:  Silicone    EPDM    NBR    VITON   Teflon

Performance

  ◆Removal rating: 1μm    5μm    10μm   20μm   50μm    100μm

  ◆Maximum Differential pressure:2.0 Bar @21°C

  ◆Maximum operating temperature:80°C

Applications

  ◆Drinking water treatment

  ◆Electronics Industry

  ◆Pharmaceutical Industry

  ◆Industrial water treatment

  ◆Plating

  ◆Petroleum industry

Features

  ◆Filtration efficiency for maximal granule is 99%.

  ◆Filtration efficiency for beginning diameter is 95%.

  ◆The value of flow rate is determined at △P=0．015Mpa , 10″standard filter
  ◆100% Pure Polypropylene will not cause any pollution to water

  ◆Wide Chemical compatibility

  ◆Groove design to extend the filtration surface area

  ◆All kinds of adaptors are available.
